Scott Aerator - Dock Mount Aquasweep

.

• 5-year, unconditional warranty on motor.

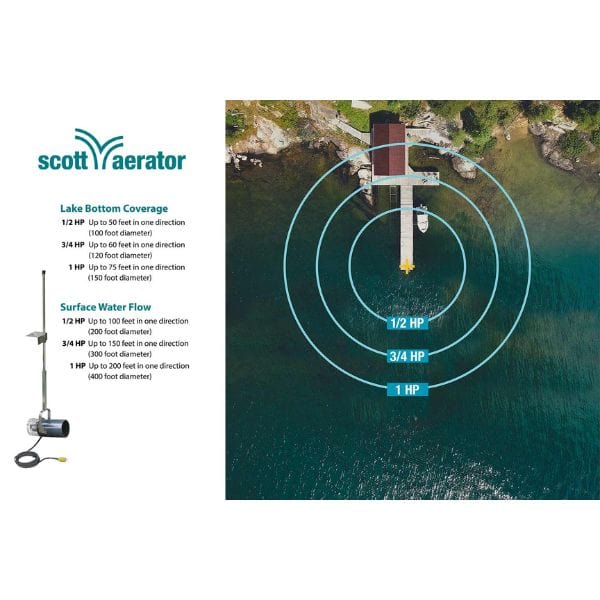

• Our ½-hp motor is rated at 400 gallons-per-minute flow rate, pushes debris a minimum 50 feet.
• Our ¾-hp motor is rated at 450 gallons-per-minute flow rate, pushes debris a minimum 60 feet.
• Our 1-hp motor is rated at 500 gallons-per-minute flow rate, pushes debris a minimum 75 feet.
• Moves muck and bottom debris up to 150 feet in diameter.
• Runs at a constant 3,450 rpms, 48 lbs. of thrust achieved with the ½-hp motor, 58 lbs. with the ¾ hp, 72 lbs with the 1 hp.
• Minimum water depth required is 12".
• Maintenance-free, environmentally-friendly motors.
• ½-hp motor runs at 115 volts 10 amps, 680 watts.
• ¾-hp motor runs at 10.5 amps, 875 watts.
• 1-hp motor runs at 11.5 amps, 1095 watts.
• 50 feet of 12-gauge submersible power cord on the ½ hp unit, 10-gauge on the larger units, longer power cords available.
• Over 7 feet in length, 55 to 68 pounds.
• Rugged, high-density polyurethane-and-stainless steel construction.
• We also have larger 230-volt motors, many variations of 3-phase and 50-Hz models available.
• ARL tested and approved to be in compliance with the applicable requirements of UL and the National Electric Code as complete packages.

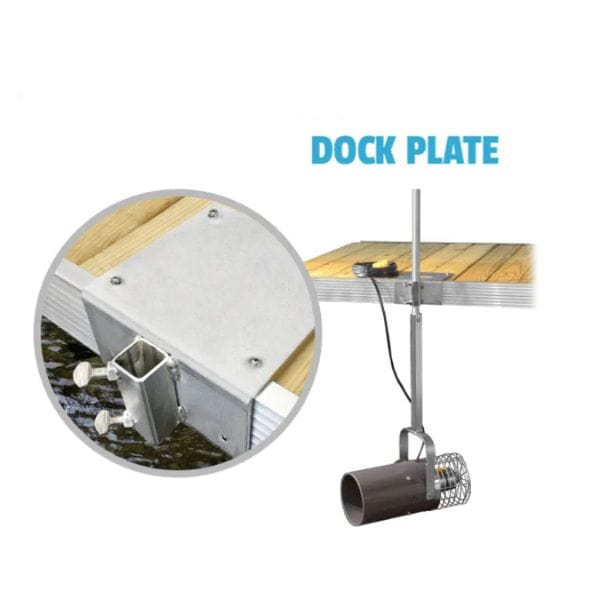

DOCK PLATE (INCLUDED) Perfect for long-term installation to a dock or similar structure.

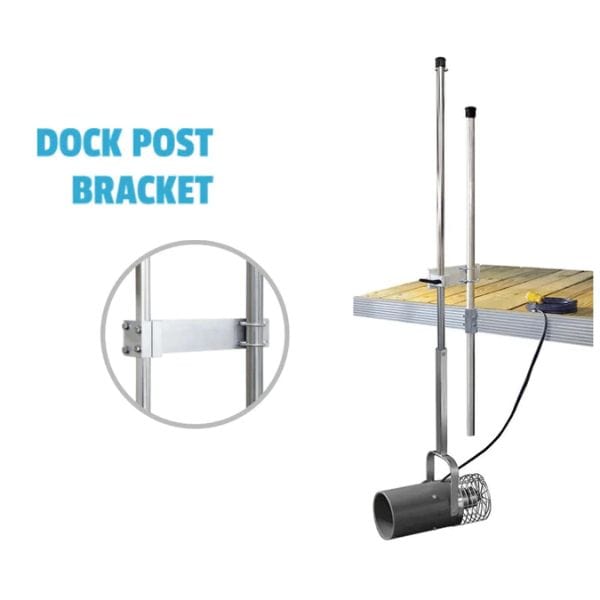

DOCK POST BRACKET (UPGRADE) An excellent mounting option for docks with round, metal posts. Upgrading to the dock post bracket replaces the standard dock plate.

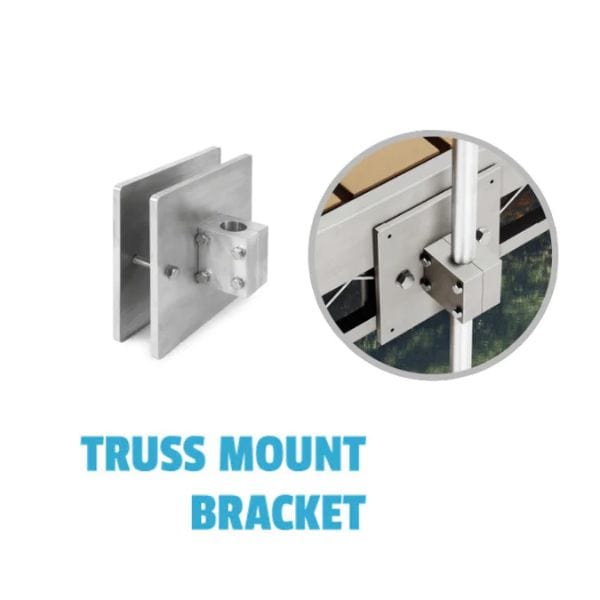

TRUSS MOUNT (UPGRADE) Works well on metal docks and comparable frames using a sturdy, non-destructive attachment method. Upgrading to the truss mount replaces the standard dock plate.

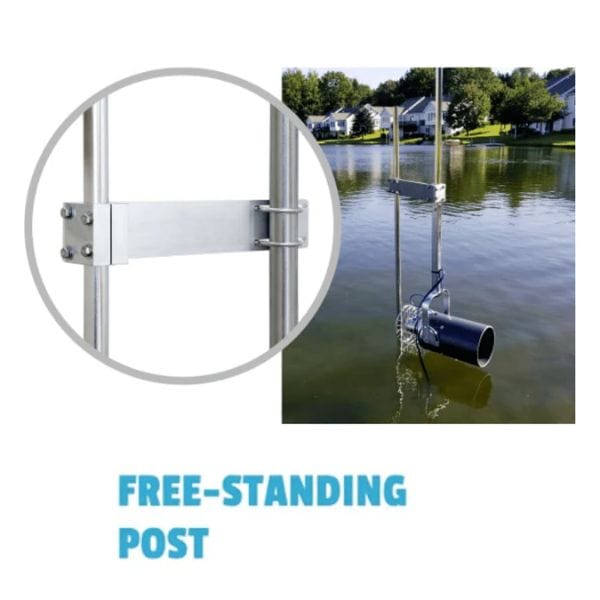

FREE-STANDING POST (UPGRADE) Where permanent structure is not available, the free-standing-post upgrade offers excellent flexibility for placement. Includes a sturdy, 8-foot post and the dock post bracket. Upgrading to the free-standing post replaces the standard dock plate.

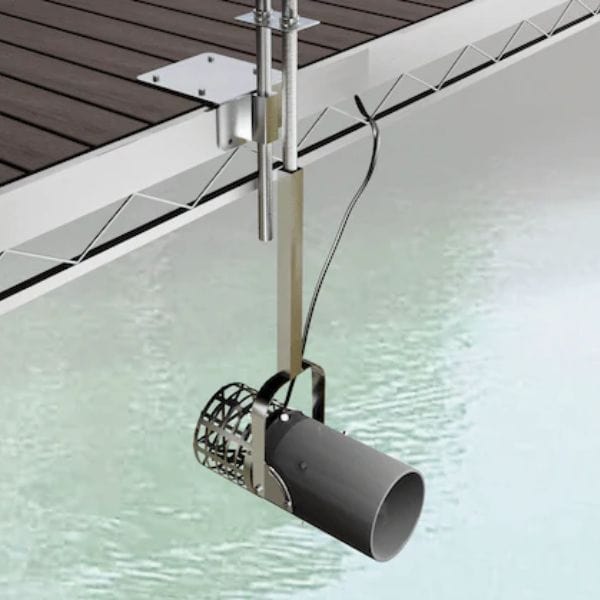

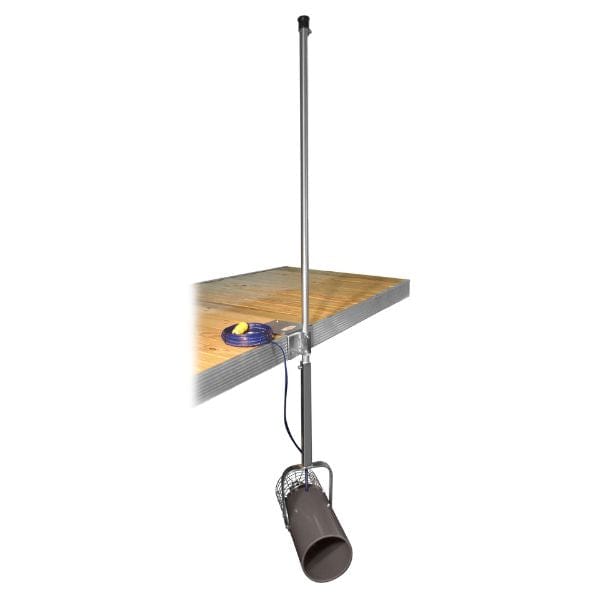

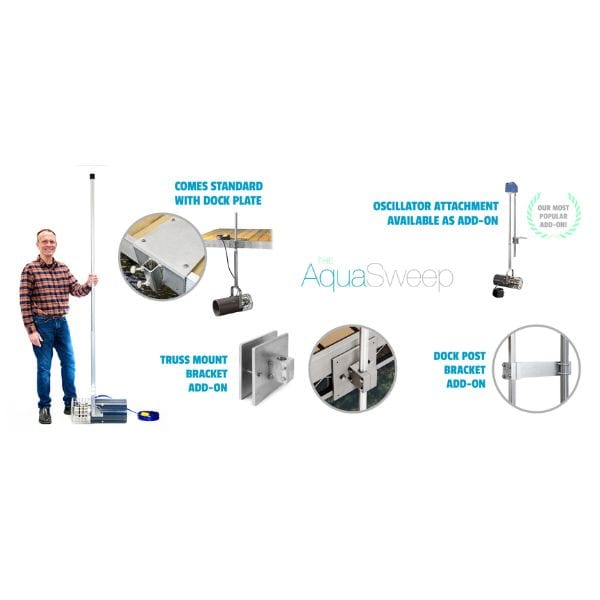

The Aquasweep safely mounts to your dock via the included stainless steel mounting plate, or you can add a post-mounting bracket at additional cost. You can also purchase a mounting post to place your Aquasweep anywhere you need its muck-blasting power! Mounting the Aquasweep to your dock or to the add-on post and positioning the Aquasweep 2-4" from the bottom will give you the best muck-blasting results. The stainless steel yoke assembly the unit is attached to reaches a depth of up to 7 feet. You can select an alternative mounting option using the menu above when you add it to your cart (best value), or you can add a second, additional mounting option: dock post bracket or the truss mount bracket.

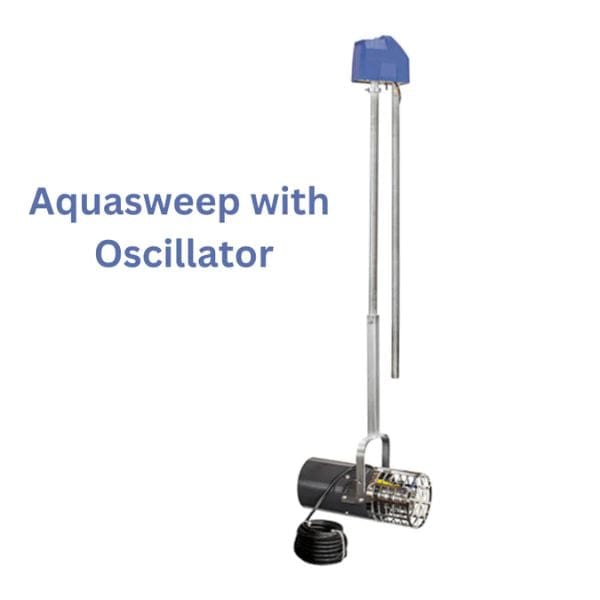

The Aquasweep can be pointed in any direction around your dock to focus your muck or sediment movement precisely where you’d like it. It also includes vertical adjustment, making it the ideal solution for eliminating decaying bottom muck, targeting weedy areas, or removing floating surface algae. We recommend adding the oscillator attachment so you don’t have to manually rotate the Aquasweep. The fully programmable oscillator automatically rotates the Aquasweep in 20° increments every 20 minutes for up to 359° of coverage!

Looking for all-natural algae control? The Aquasweep is the solution you’ve been looking for! Whether you call it a muck mover, a lake blower, an aqua-blaster, or a water-thruster, the Aquasweep is a great solution for managing your pond, lake, or canal!

The Aquasweep is manufactured in-house, utilizing a heavy-duty, 50 foot long, 12-gauge, submersible power cable with a rugged, marine-grade, water-resistant plug (you have the option to increase the length of your power cable up to 150 feet, (at additional cost). The unit runs on standard 110-volt power, so no special wiring or electrician services are needed.

The Aquasweep’s 3,450 rpm of power comes from a professional-grade, fully submersible, maintenance-free electric motor, available in both 110- and 230-volt styles. The Aquasweep, just like every product manufactured by Scott Aerator Company, carries an unconditional, five-year motor warranty.
