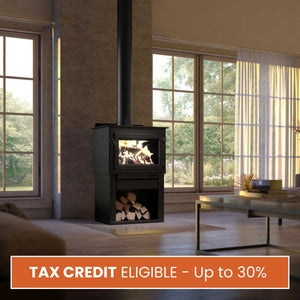

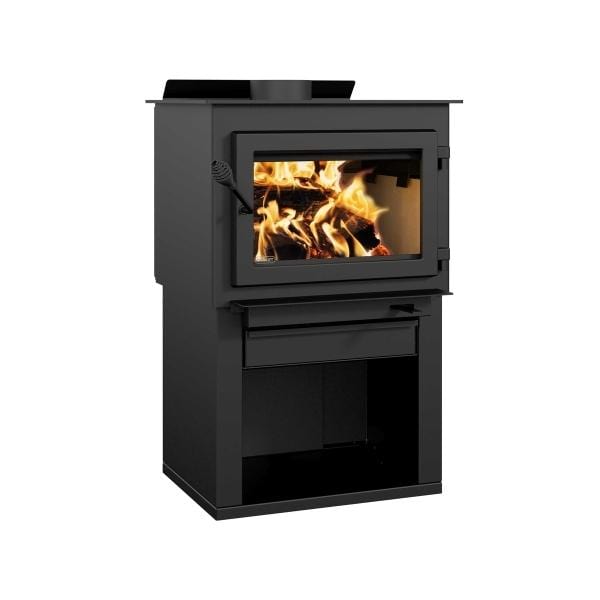

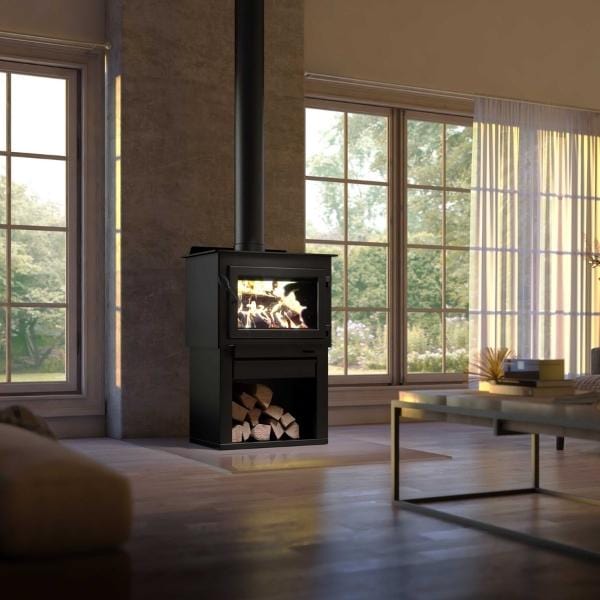

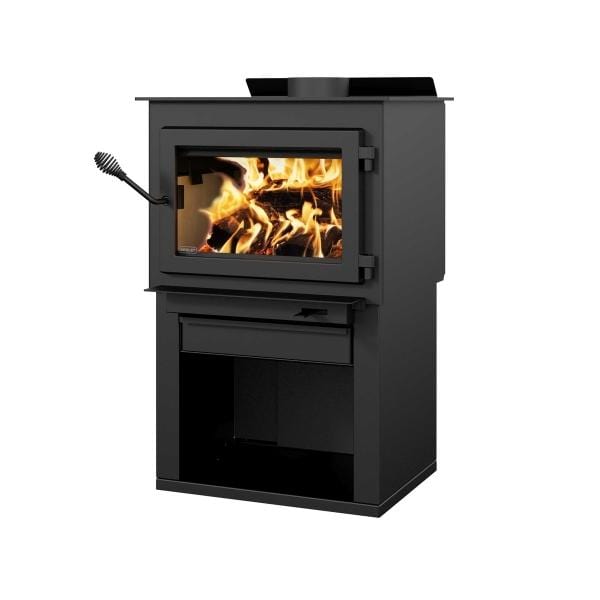

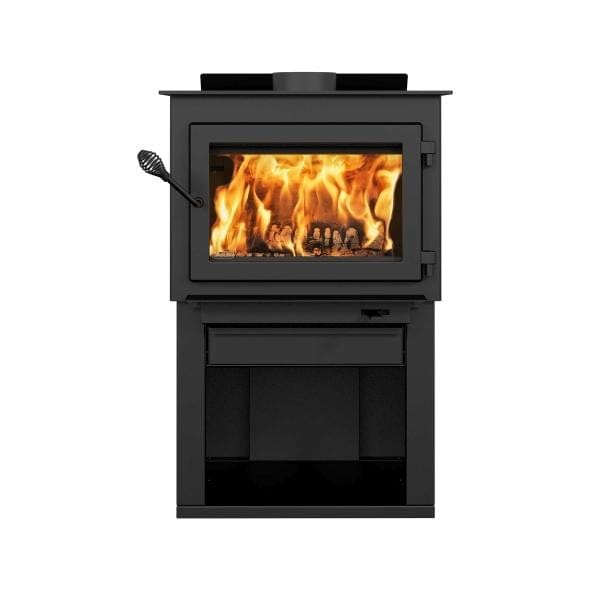

The Deco Alto Wood Stove By Drolet: Warm, Efficient, And Stylish
Looking for an efficient and stylish wood stove for your large home? The Drolet Deco Alto Wood Stove is perfect for spaces up to 2,100 ft², releasing up to 75,000 BTU/h of heat. This contemporary take on the traditional wood stove features clean lines and a tall, slender design that will make a statement in any room. The integrated storage space in the base is ideal for keeping your firewood close at hand. With its superior performance and ecological design, the Deco Alto is the perfect choice for those who want the best of both worlds.
Included: pedestal with log storage, rear air deflector, ash lip, ash drawer, air damper
High Efficiency Wood Stove Deco Alto Features:
- Up to 8 hours burn time
- Up to 20" logs
- 2.4 ft³ firebox
- Cast iron door with adjustable hinges and ceramic glass
- Heavy duty 5/16" steel top reinforced with a stainless steel heat shield
- EPA certified
- Proudly made in Canada
- Limited lifetime warranty
- Certified for mobile home and alcove installation
Drolet Deco Alto Modern Style Wood Stove Specifications:
| Fuel type |
Dry cordwood (16" recommended)
|
| Recommended heating area(9) | 500 - 2,100 ft² |
| Overall firebox volume | 2.4 ft³ |
| EPA loading volume | 2.02 ft³ |
| Maximum burn time(9) | 8 h |
| Maximum heat output-dry cordwood(4) |
75,000 BTU/h (22 kW)
|
| Minimum overall heat output rate(4) (5) |
14,800 BTU/h (4.34 kW)
|
| Maximum overall heat output rate(4) (5) |
28,600 BTU/h (8.38 kW)
|
| Average overall efficiency-dry cordwood (HHV)(5) (6) | 69 % |
| Average overall efficiency-dry cordwood (LHV)(5) (7) | 74 % |
| Optimum efficiency(1) (2) | 77 % |
| Optimum heat transfer efficiency(8) | 75 % |
| Average particulate emission rate(3) | 1.54 g/h |
| Average CO(10) | 89.4 g/h |
| Size | Large |
| Maximum log length | 20" |
| Shipping weight | 390 lb (177 kg) |
| Overall dimension (Width) | 25 5/8" |
| Overall dimension (Height) | 39 3/4" |
| Overall dimension (Depth) | 26 1/2" |
| Warranty | Limited lifetime |
| Alcove installation approved | Yes |
| Mobile home approved |
Yes, with fresh air intake
|
| Certified according to applicable standards |
By an accredited laboratory (CAN/USA)
|
| Premium quality blower included (CFM) | Optional |
| Combustion technology | Non-catalytic |
| Stainless-steel secondary-air system | Yes |
| Flue outlet diameter | 6" |
| Distance-center of the flue outlet to back unit | 7 3/8" |
| Distance-center of the flue outlet to side unit | 12 7/8" |
| Recommended chimney diameter | 6" |
| Type of chimney |
CAN/ULC S629, UL 103 HT (2100 °F)
|
| Minimum chimney height | 12' |
| Door type |
Single, glass with cast iron frame
|
| Door opening size (Width) | 17 1/2" |
| Door opening size (Height) | 9" |
| Glass type | Ceramic glass |
| Glass surface - W x H | 16 3/4" x 10 1/4" |
| Steel thickness-body | 3/16" |
| Steel thickness-top | 5/16" |
| Firebox size (Width) | 21" |
| Firebox size (Height) | 11 7/8" |
| Firebox size (Depth) | 16 1/2" |
| Log positioning |
Loading over width
|
| Firebox lined with refractory bricks | Yes |
| Baffle type |
High quality vermiculite
|
| High-efficiency certified appliance |
Yes, EPA 2020 approved
|
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA Standard (emissions) | EPA |
| Canadian Standard (safety) | ULC S627 |
| USA Standard (safety) |
UL 1482, UL 737
|
Drolet - Deco Alto Wood Stove Clearance Requirements:
|
Single wall pipe
|
Double wall pipe | |
| Clearance - Side wall | 22" | 22" |
| Clearance - Corner | 12" | 12" |
| Clearance - Back wall | 11" | 6" |
| Clearance - Base of the unit to ceiling** | 84" | 84" |
Drolet Alto Wood Stove DB03220 Manual:
Click Here for Operations and Installation Manual
Click Here for Safety Notifications And General Information
Drolet Deco Alto DB03220 Wood Stove Dimensions:
Drolet Tax Credit Certificate for Qualifying Wood Stoves
