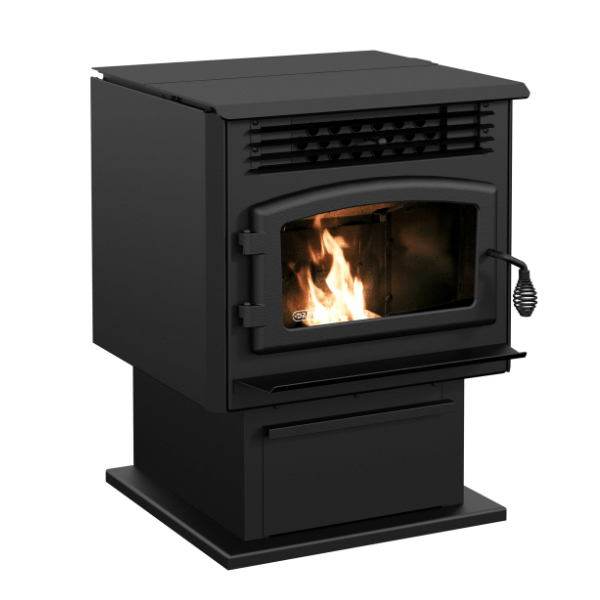

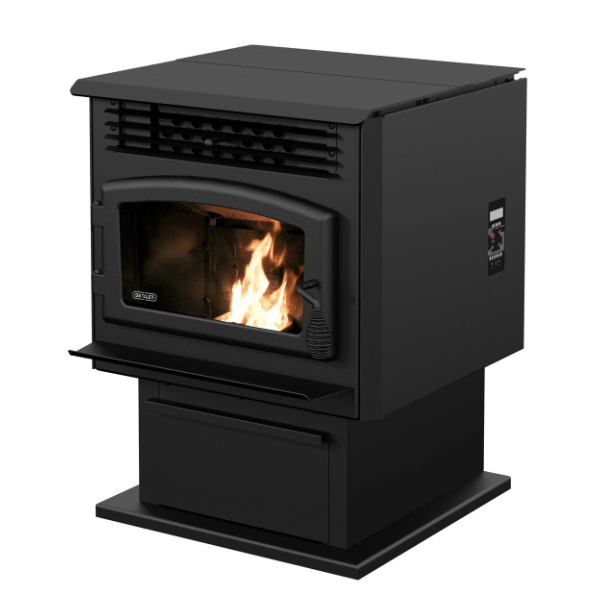

Drolet ECO-55: The Perfect Stove for Your Home This Winter
The Drolet ECO-55 pellet stove is the perfect way to keep your home warm and comfortable this winter. Easy to use and maintain, this stove features intuitive electronic control and easy-to-use thermostatic control. Heats spaces up to 2,000 ft², making it the perfect choice for homes of all sizes. With only 0.96 g/h of particulate emissions, this EPA-certified wood stove puts out an impressive 39,260 BTU/h heat. So if you're looking for a reliable and affordable source of heat, the Escape 1200 is the perfect choice.
Options: wall thermostat, fresh air intake kit, hopper extension, stand alone auxiliary discharge tank, storage tank with pneumatic self-feeding pellet system, storage tank extension
Drolet ECO-55 Pellet Stove Features:
- Burn time up to 69 hours (up to 138 hours with the optional hopper extension)
- Hopper capacity of 80 lb
- Top-feed burner
- EPA 2020 certified
- Proudly made in Canada
- Limited lifetime warranty
- Certified for mobile home and alcove installation
- Optimum efficiency : 78.4%
- Average particulate emissions rate : 0.96 g/h
- High-efficiency certified appliance : Yes, EPA 2020 approved
- Approved for a mobile home installation
- Recommended heating area-ft² : 500 - 2,000
- Blower included
Eco-55 Pellet Stove DP00070 and DP00071 Inclusions: blower, ceramic glass, ash lip

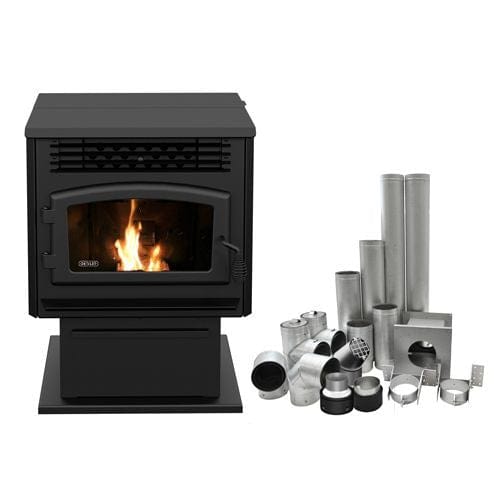

Eco-55 Pellet Stove With 4" Basement Venting Kit DP00070KVB Inclusions: 4'' Vortex pellet vent basement kit (one stove adapter, one 3"Ø to 4"Ø increaser stove adapter, two tees with cap, four pipe lengths: 12", 18", 24" and 36", one slip (adjustable section) - 9"L, two 90° elbows, one wall pass-thru, two wall supports and one jet cap), blower, ceramic glass, ash lip
Eco-55 Pellet Stove With 3" Ground Floor Venting Kit DP00070KVG Inclusions:: 4'' Vortex pellet ground floor kit (one stove adapter, one tee, one 12", 18" and 36" length of black stove pipe, one 9" length slip section, one 90° elbow, one wall pass-thru, two wall supports and one jet cap), blower, ceramic glass, ash lip
Drolet Eco-55 ST Pellet Stove Specifications:
| SKU No. | DP00070 | DP00071 | DP00070KVB |
DP00070KVG
|
| Fuel type | Pellet (Premium grade or better) | Pellet (Premium grade or better) | Pellet (Premium grade or better) |
Pellet (Premium grade or better)
|
| Recommended heating area-ft² | 500 - 2,000 | 500 - 2,000 | 500 - 2,000 | 500 - 2,000 |
| Hopper capacity | 60 lb (27 kg) | 80 lb (36 kg) | 60 lb (27 kg) |
60 lb (27 kg)
|
| Maximum burn time | 51 h | 69 h | 51 h | 51 h |
| Maximum heat input rate | 39,260 BTU/h (11.5 kW) | 39,260 BTU/h (11.5 kW) | 39,260 BTU/h (11.5 kW) |
39,260 BTU/h (11.5 kW)
|
| Overall heat output rate | 6,648 BTU/h (1.95 kW) to 28,540 BTU/h (8.36 kW) | 6,648 BTU/h (1.95kW) to 28,540 BTU/h (8.36kW) | 6,648 BTU/h (1.95 kW) to 28,540 BTU/h (8.36 kW) |
6,648 BTU/h (1.95 kW) to 28,540 BTU/h (8.36 kW)
|
| Average overall efficiency | 70.3 % (HHV) - 75.8 % (LHV) | 70.3 % (HHV) - 75.8 % (LHV) | 70.3 % (HHV) - 75.8 % (LHV) |
70.3 % (HHV) - 75.8 % (LHV)
|
| Optimum efficiency | 0.784 | 0.784 | 0.784 | 78.40% |
| Optimum heat transfer efficiency | 73 % | 73 % | 73 % | 73 % |
| Burn rate | 1.2 - 4.7 lb/h | 1.2 - 4.7 lb/h | 1.2 - 4.7 lb/h |
1.2 - 4.7 lb/h
|
| Average particulate emissions rate | 0.96 g/h | 0.96 g/h | 0.96 g/h | 0.96 g/h |
| Average CO (12) | 7.6 g/h | 7.6 g/h | 7.6 g/h | 7.6 g/h |
| Average electrical power consumption-ignition cycle | 3.02A (360W) | 3.02A (360W) | 3.02A (360W) |
3.02A (360W)
|
| Average electrical power consumption for continuous operation | 1.3 - 2.5A (51 - 140W) | 1.3 - 2.5A (51 - 140W) | 1.3 - 2.5A (51 - 140W) |
1.3 - 2.5A (51 - 140W)
|
| Combustion technology | Top-feed | Top-feed | Top-feed | Top-feed |
| High-efficiency certified appliance | Yes, EPA 2020 approved | Yes, EPA 2020 approved | Yes, EPA 2020 approved |
Yes, EPA 2020 approved
|
| Electronic igniter | Yes | Yes | Yes | Yes |
| Flue outlet diameter | 3" | 3'' | 3" | 3'' |
| Type of chimney | ULC/ORD-C441, CAN/ULC S609, UL 641 (TYPE L) | ULC/ORD-C441, CAN/ULC S609, UL 641 (TYPE L) | ULC/ORD-C441, CAN/ULC S609, UL 641 (TYPE L) |
ULC/ORD-C441, CAN/ULC S609, UL 641 (TYPE L)
|
| Baffle type | Stainless steel | Stainless steel | Stainless steel |
Stainless steel
|
| Approved for an alcove installation | Yes | Yes | Yes | Yes |
| Approved for a mobile home installation | Yes, with fresh air intake | Yes, with fresh air intake | Yes, with fresh air intake |
Yes, with fresh air intake
|
| Shipping Weight | 277 lb (126kg) | 286 lb (130 kg) | 319 lb (145 kg) |
277 lb (126kg)
|
| Door type | Single, glass with cast iron frame | Single, glass with cast iron frame | Single, glass with cast iron frame |
Single, glass with cast iron frame
|
| Glass type | Ceramic glass | Ceramic glass | Ceramic glass |
Ceramic glass
|
| Glass surface – dimensions (Width X Height) | 15 3/4" X 8 1/8" | 15 3/4'' X 8 1/8'' | 15 3/4" X 8 1/8" |
15 3/4" X 8 1/8"
|
| Glass air-wash system | Yes | Yes | Yes | Yes |
| Premium quality blower included (CFM) | 176 | 176 | 176 | 176 |
| Noise level at 6 feet | 47 dBa (+/- 3 dBa) - 60 dBa (+/- 3 dBa) | 47 dBa (+/- 3 dBa) - 60 dBa (+/- 3 dBa) | 47 dBa (+/- 3 dBa) - 60 dBa (+/- 3 dBa) |
47 dBa (+/- 3 dBa) - 60 dBa (+/- 3 dBa)
|
| Overall dimension (Height) | 32 5/8'' | 36 1/8'' | 32 5/8'' | 32 5/8'' |
| Overall dimension (Width) | 25 1/8'' | 25 1/8'' | 25 1/8'' | 25 1/8'' |
| Overall dimension (Depth) | 29 1/2'' | 29 1/2'' | 29 1/2'' | 29 1/2'' |
| Voltage and frequency | 120 VAC / 60 Hz | 120VAC / 60Hz | 120 VAC / 60 Hz |
120 VAC / 60 Hz
|
| USA standard (emissions) | ASTM E2779 | ASTM E2779 | ASTM E2779 |
ASTM E2779
|
| Canadian Standard (emissions) | CSA B415.1-10 | CSA B415.1-10 | CSA B415.1-10 |
CSA B415.1-10
|
| USA standard (safety) | UL 1482, ASTM E1509 | UL 1482, ASTM E1509 | UL 1482, ASTM E1509 |
UL 1482, ASTM E1509
|
| Canadian standard (safety) | ULC S627 | ULC S627 | ULC S627 | ULC S627 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) | By an accredited laboratory (CAN/USA) | By an accredited laboratory (CAN/USA) |
By an accredited laboratory (CAN/USA)
|
| Warranty | Limited lifetime | Limited lifetime | Limited lifetime |
Limited lifetime
|
Drolet Eco-55 ST Pellet Stove Clearance Requirements:
| Clearance – back wall | 3'' |
| Clearance - corner | 3'' |
| Clearance – side wall | 6'' |
| Clearance – top (measured from the platform on which the appliance is installed)** | 48'' |
Drolet Eco 55 Pellet Stove Manual:
Click Here for Installation Manual
Drolet ECO-55 ST Pellet Stove Operation Manual:
Click Here for Operation Manual
