Achieve Comfort and Save Money With the Drolet Fox Wood Stove DB03186
The Drolet Fox wood stove is perfect for those small spaces that you want to heat up quickly and efficiently. This little guy has a max heat output of 45,000 BTU/h, meaning it can warm up to 1,200 ft² in no time! Plus, it's EPA certified at an emission rate of 1.8 g/h, so you can rest assured that you're doing your part to protect the environment.
This charming cast-iron appliance is decorated with a playful fox motif, and its deep combustion chamber allows you to go longer between ash cleanouts. Plus, it's easy to assemble - perfect for anyone who wants an attractive and functional wood stove without all the fuss.
Included: steel legs, air deflector, ceramic glass, cast iron door with adjustable hinges, ash lip, air damper

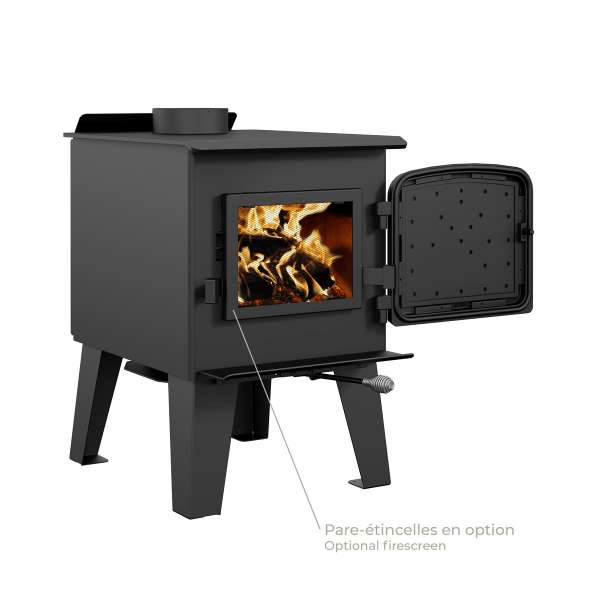

Options: blower, thermodisc, firescreen, fresh air intake kit
When you purchase a Drolet Fox, you qualify to receive a federal tax credit of up to 26% of the cost installation AND equipment. Read more about it here.
Drolet Fox Cast Iron Wood Stove Features:
- Up to 5 hours burn time
- Up to 17" logs
- 1.55 ft³ firebox
- EPA certified
- Proudly made in Canada
- Limited lifetime warranty
- Certified for mobile home and alcove installation
- Firebox lined with refractory bricks for better heat distribution
- Optimum efficiency: 80 %
- Average particulate emissions rate: 1.8 g/h
- Steel thickness – top: 1/4"
- High-efficiency certified appliance: Yes, EPA 2020 approved
- Approved for a mobile home installation
- Recommended heating area-ft² : 250 - 1,200
Drolet Fox Cast Iron Wood Stove DB03186 Specifications:
| Fuel type | Dry cordwood (16" recommended) |
| Recommended heating area-ft² () | 250 - 1,200 |
| Overall firebox volume-ft³ | 1.7 |
| EPA loading volume-ft³ | 1.55 |
| Maximum burn time () | 5 h |
| Maximum heat output-dry cordwood (3) | 45,000 BTU/h (13.19 kW) |
| Overall heat output rate < (3) (4) | 12,124 BTU/h (3.55 kW) to 26,700 BTU/h (7.83 kW) |
| Average overall efficiency (dry cordwood) (4) | 74 % (HHV) (5) 79 % (LHV) (6) |
| Optimum efficiency (7) (8) | 80% |
| Optimum heat transfer efficiency (9) | 79% |
| Average particulate emissions rate (1) | 1.8 g/h |
| Average CO (10) | 74 g/h |
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 17" |
| Log positioning | Loading over depth |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height (feet) | 12' |
| Baffle type | High quality vermiculite |
| Approved for an alcove installation | Yes |
| Approved for a mobile home installation | Yes, with fresh air intake |
| Shipping Weight | 235 lb (107 kg) |
| Glass surface – dimensions (Width X Height) | 10 1/4" X 8 1/2" |
| Glass air-wash system | Yes |
| Overall dimension (Height) | 28 3/4" |
| Overall dimension (Width) | 18 1/2" |
| Overall dimension (Depth) | 28 7/8" |
| Door opening – dimension (Height) | 7 5/8" |
| Door opening - dimension (Width) | 12" |
| Firebox – dimension (Height) | 11 3/4" |
| Firebox – dimension (Width) | 14 1/4" |
| Firebox – dimension (Depth) | 19 1/8" |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Steel thickness – body | 3/16" |
| Steel thickness – top | 1/4" |
| USA standard (emissions) | EPA |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482, UL 737 |
| Canadian standard (safety) | ULC S627 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
Drolet Fox Cast Iron Wood Stove Clearance Requirements:
| United States | Single wall pipe | Double-wall pipe |
| Clearance – back wall | 12" | 6" |
| Clearance - corner | 11" | 7" |
| Clearance – side wall | 18" | 18" |
| Clearance – top (measured from the platform on which the appliance is installed)** | 84" | 84" |
Drolet Fox Wood Stove Installation and Operation Manual:
Click Here for Installation Manual
Drolet Fox Wood Stove Safety Notifications And General Information:
Click Here for Safety Notifications And General Information
Drolet Fox Wood Stove DB03186 Dimensions:
Drolet Tax Credit Certificate for Qualifying Wood Stoves
