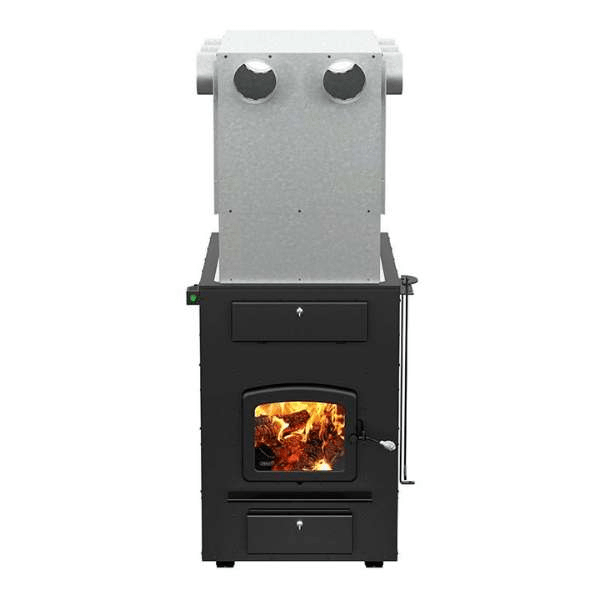

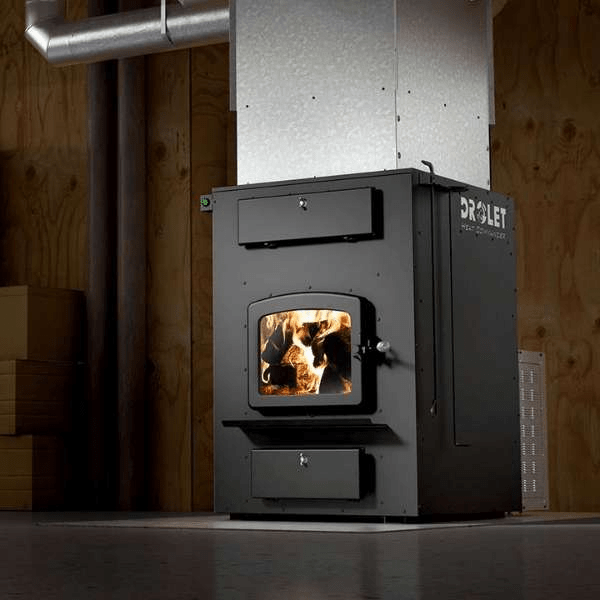

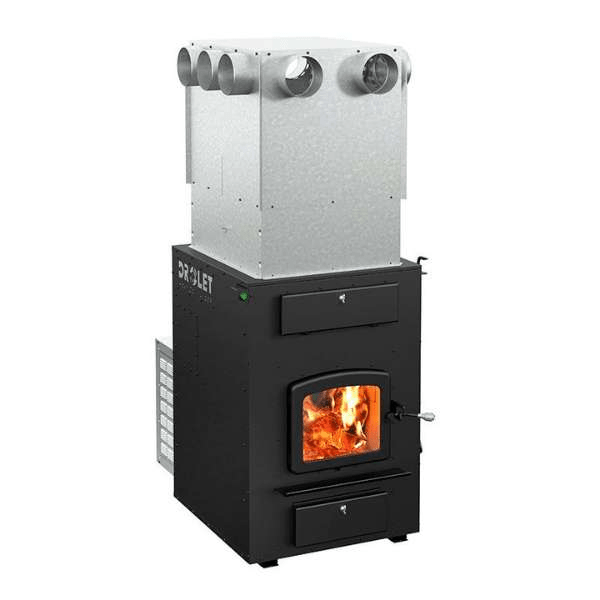

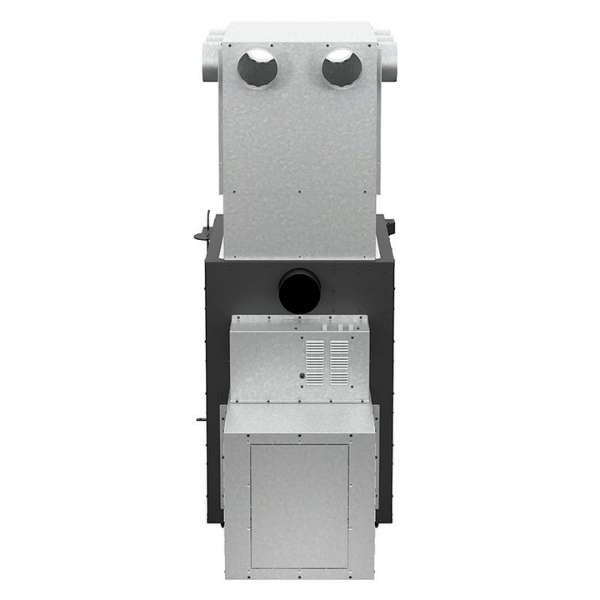

Drolet Heat Commander Wood Furnace DF02003
by Drolet
Original Price
$4,199.00
Current Price
$3,399.00
Drolet Heat Commander Wood Furnace: Comfort and Savings in the Palm of Your Hand
The Drolet Heat Commander Wood Furnace is a top of the line heating system that provides amazing comfort and savings. With its innovative design and ease of use, the Heat Commander is perfect for any home.
The Heat Commander is the perfect furnace for those who want an EPA certified system that can heat up a large space quickly. With its 310,000 BTU capacity, this furnace can easily take care of spaces up to 2,500 ft². Plus, its overall thermal power is much higher than most other comparable systems, making it a great choice for anyone looking for efficient heating.
This furnace features Dual Fire© technology with a two-stage electronic combustion control, so you can be sure that your furnace will run smoothly and efficiently. Plus, its compact design makes it easy to install in any room. Its self-regulated combustion ensures easy ignition, while its automated air supply and flame adjustment systems work together with your thermostat to provide additional safety and reduce emissions. Plus, with minimal maintenance required, this furnace is practically hassle-free! So why wait? Invest in the Heat Commander Wood Furnace today!
Included: blower, thermostat, hot air plenum, combustion-state indicator light, automated combustion control, ash lip, ash drawer, poker and scraper
Options: air filter with support, return air duct with filter
- Air filters help filter dirt before distributing hot air in your installation in addition to protecting the blower. The use of filters is strongly recommended.

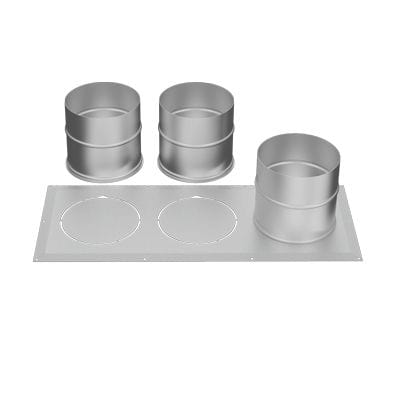

- The fresh air return adapter can be added to the blower box to increase the efficiency of your system. This option allows you to take fresh air from the rooms and bring it to the furnace to be heated and redistributed in these same rooms. It allows more even air circulation to increase comfort.
When you purchase a Drolet Heat Commander, you qualify to receive a federal tax credit of up to 26% of the cost installation AND equipment. Read more about it here.
Drolet Heat Commander DF02003 Features:
- Intuitive start mode for fast and clean ignition
- Optimized combustion for low creosote formation
- Uninterrupted heat with on-demand boost based on thermostatic demand
- Among the lowest burn rates on the market (firewood savings)
- Up to 10 hours burn time
- 3.6 ft³ firebox
- 21'' logs (loading over depth and width)
- EPA certified
- Proudly made in Canada
- Limited lifetime warranty
- Weight : 819 lbs
- Firebox lined with refractory bricks for better heat distribution
- Optimum efficiency : 83.2 %
- Average particulate emissions rate : 0.095 lb/mmBTU (0.041 g/MJ)
- Steel thickness – top : 1/4"
- High-efficiency certified appliance : Yes, EPA 2020 approved
- Recommended heating area-ft² : 1,000 - 2,500
- Blower included
Drolet Heat Commander Furnace Specifications:
| Fuel type | Dry cordwood (16" recommended) |
| Recommended heating area-ft² | 1,000 - 2,500 |
| Overall firebox volume-ft³ | 3.6 |
| Maximum burn time | 10 h |
| Maximum input capacity (dry cordwood) | 310,000 BTU |
| Overall heat output rate | 19,354 BTU/h (5.6 kW) to 47,052 BTU/h (13.8 kW) |
| Average overall efficiency (min. to max.) | 76.6% (HHV) to 82.0 % (LHV) |
| Delivered heat output rate (min. to max.) | 13,297 BTU/h (3.9 kW) to 42,234 BTU/h (12.4 kW) |
| Average delivered efficiency (min. to max.) | 60.7% (HHV) to 65.0% (LHV) |
| Optimum efficiency | 0.832 |
| Optimum heat transfer efficiency | 81 % |
| Average particulate emissions rate | 0.095 lb/mmBTU (0.041 g/MJ) |
| Average CO | 8.78 lb/mmBTU (3.78 g/MJ) |
| Average electrical power consumption | 330 W |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 21" |
| Log positioning | Loading over width and over depth |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Baffle type | C-Cast or equivalent |
| Approved for a mobile home installation | No |
| Shipping Weight | 740 lb (337 kg) |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 12 3/8 X 10 1/8" |
| Glass air-wash system | Yes |
| Blower (hp / speed / CFM) | 1/3 | 1 | 1,135 |
| Filter – dimensions (Width X Height X Depth) | 15" X 20" X 1" |
| Overall dimension (Height) | 63 1/2" |
| Overall dimension (Width) | 27 3/4" |
| Overall dimension (Depth) | 51 1/8" |
| Door opening – dimension (Height) | 10" |
| Door opening - dimension (Width) | 13 3/4" |
| Firebox – dimension (Height) | 16 3/8" |
| Firebox – dimension (Width) | 18 1/2" |
| Firebox – dimension (Depth) | 22 3/4" |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Steel thickness – body | 3/16" |
| Steel thickness – top | 1/4" |
| Hot air plenum – dimension (Depth or Height) | 22 3/8" - 47 7/8" |
| Hot air plenum – dimension (Width) | 26 7/8" |
| USA standard (emissions) | EPA |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 391 |
| Canadian standard (safety) | CAN/CSA B366.1 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
Drolet Heat Commander Clearance Requirements:
| United States | Single wall pipe |
Double wall pipe
|
| Clearance – back wall | 14 1/4" | 6 3/4" |
| Clearance – ducts | 1" (plenum=5") | |
| Clearance – top (measured from the platform on which the appliance is installed)** | 69" | |
| Clearance – recommended for maintenance on option side | 24" | |
| Clearance – front | 36" | |
| Clearance - side wall | 11" |
Drolet Heat Commander Wood Furnace DF02003 Quick Start Guide:
Click Here for Quick Start Guide
Drolet Heat Commander Wood Furnace DF02003 Installation and Operation Manual:
Click Here for Installation Manual
Drolet Heat Commander Wood Furnace DF02003 Specification Sheet:
