Bring The Warmth, Comfort And Style Of Wood-Burning Stoves Into Your Home
Fuel type : Dry cordwood (16" recommended)
Heating area : 750 - 2,200 Ft2
Maximum heat output : 80,000 BTU/h (23.4 kW)

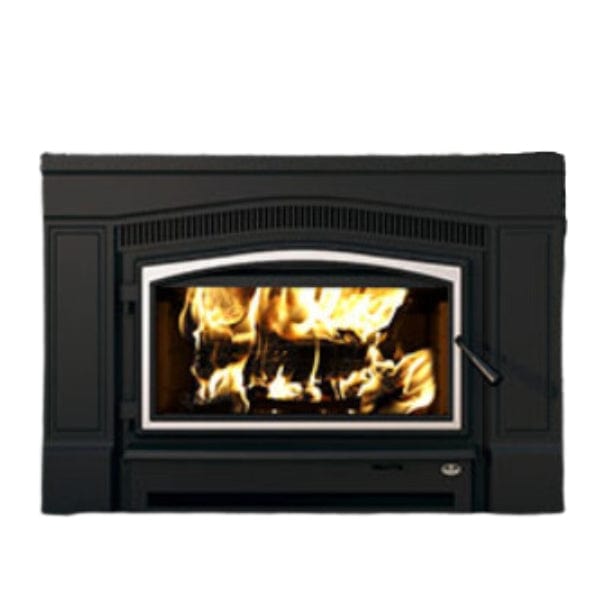

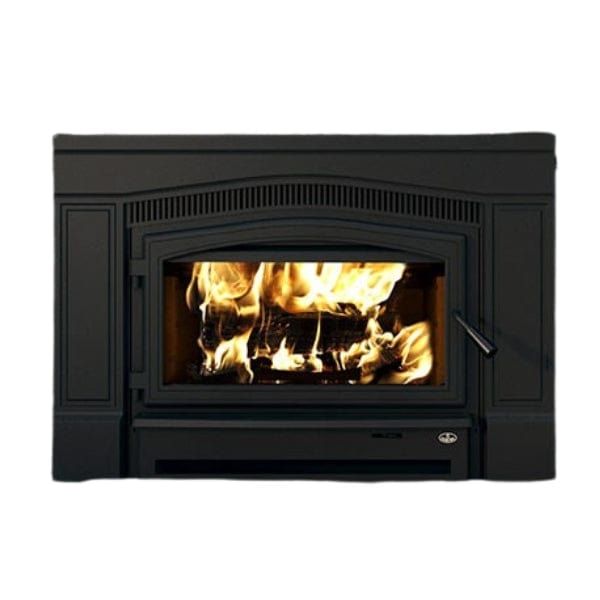

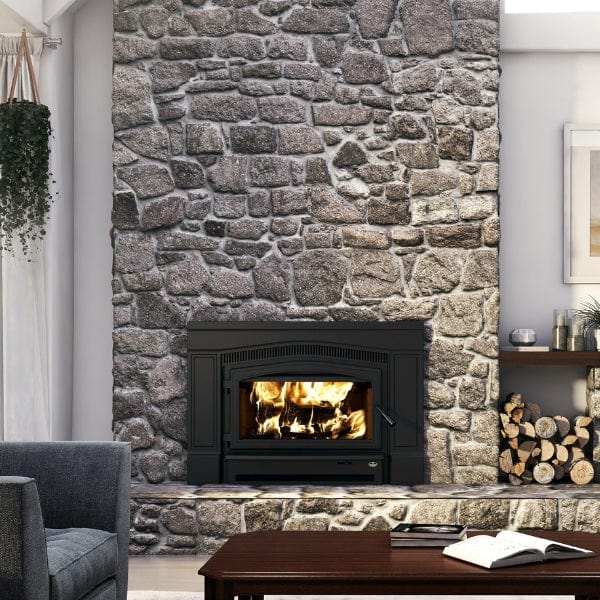

This product is a fusion of traditional style and technological innovation, designed to bring the warmth and comfort of a wood-burning stove into your home. The Matrix 2700 features a large viewing area, so you can sit back and enjoy the flames in all their glory. This insert is also eco-friendly, with efficient combustion and quality performance that will help you save money on your energy bills. Plus, its classic design is sure to complement any home décor.
This unit comes standard with a cast iron faceplate and heat activated blower, so you know it's built to last. Plus, you can customize the look of this appliance by choosing from a black or brushed silver-plated door overlay and fire screen. Trust us, the Matrix 2700 will give your home the perfect blend of style and function.
Osburn Matrix 2700 Wood Stove Performance:
Fuel type : | Dry cordwood (16" recommended) | |
Recommended heating area-ft² : () | 750 - 2,200 | |
Overall firebox volume-ft³ : | 2.5 | |
EPA loading volume-ft³ : | 1.94 | |
Maximum burn time : () | 8 h | |
Maximum heat output-dry cordwood : (2) | 80,000 BTU/h (23.4 kW) | |
Overall heat output rate < : (2) (3) | 12,700 BTU/h (3.72 kW) to 60,700 BTU/h (17.79 kW) | |
Average overall efficiency (dry cordwood) : (3) | 64 % (HHV) (4) | 68 % (LHV) (5) |
Optimum overall efficiency : (6) (7) | 70 % | |
Optimum heat transfer efficiency : (8) | 68 % | |
Average particulate emissions rate : (9) | 1.2 g/h | |
Average CO : (10) | 98 g/h |
Matrix 2700 Wood Stove Insert Clearance:
Canada | United-States | |
Clearance – top (measured from the platform on which the appliance is installed)** | 84" | 84" |
Clearance – combustible side mantle to unit | 9 1/2" | 9 1/2" |
Clearance – combustible top mantle to unit | 12" | 12" |
Clearance – combustible side wall to unit | 19" | 19" |
Clearance – minimum floor protection in front of the appliance | 18" | 16" |
Clearance - from the top of the unit to the shelf | 12" | |
Clearance – from the top of the insert to the shelf | 12" |
The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).
** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
Matrix 2700 Wood Insert Features:
Combustion technology | Non-catalytic |
High-efficiency certified appliance | Yes, EPA 2020 approved |
Maximum log length | 20" |
Log positioning | Loading over width |
Chimney diameter | 6" |
Flue outlet diameter | 6" |
Type of chimney | Liner - ULC-S635, CAN/ULC-S640, UL1777 |
Minimum chimney height (feet) | 15' |
Baffle type | C-Cast or equivalent |
Approved for a mobile home installation | No |
Shipping Weight | 535 lb (243kg) |
Door type | Single, glass with cast iron frame |
Glass type | Ceramic glass |
Glass surface – dimensions (Width X Height) | 24 3/8" X 12 5/8" |
Glass air-wash system | Yes |
Premium quality blower included (CFM) | 176 |
Overall dimension (Height) | 30 1/8" |
Overall dimension (Width) | 43 5/8" |
Overall dimension (Depth) | 27 1/4" |
Door opening – dimension (Height) | 10 1/2" |
Door opening - dimension (Width) | 25 3/8" |
Firebox – dimension (Height) | 12 3/8" |
Firebox – dimension (Width) | 22 5/8" |
Firebox – dimension (Depth) | 12 7/8" |
Moulded refractory bricks | Yes |
Stainless-steel secondary-air system improving gas combustion | Yes |
Adjustable threaded legs | Yes |
Steel thickness – body | 3/16'' |
Steel thickness – top | 3/16'' |
Fireplace opening – minimum (Height) | 27 1/8" |
Fireplace opening – minimum (Width) | 31 3/4" |
Fireplace opening – minimum (Depth) | 22 1/8" |
USA standard (emissions) | EPA |
Canadian Standard (emissions) | CSA B415.1-10 |
USA standard (safety) | UL 1482, UL 737 |
Canadian standard (safety) | ULC S628 |
Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
Warranty | Limited lifetime |
Osburn Matrix 2700 Owner's Manual:
