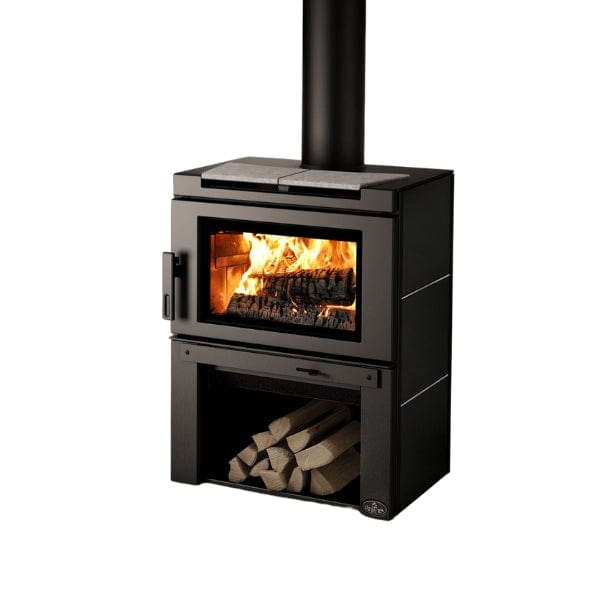

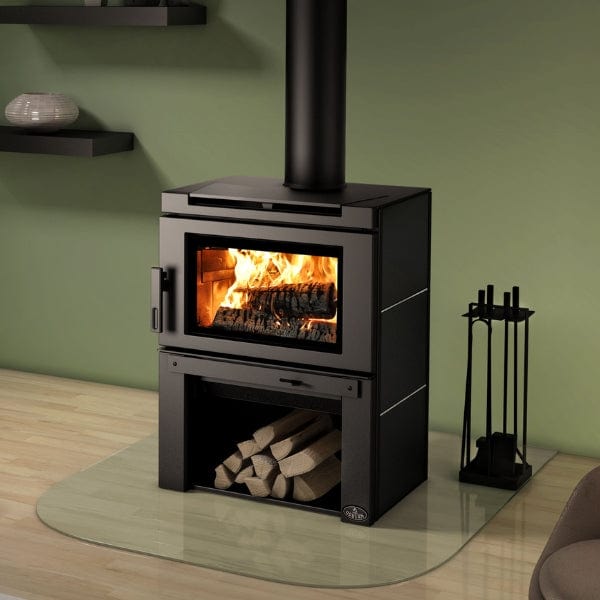

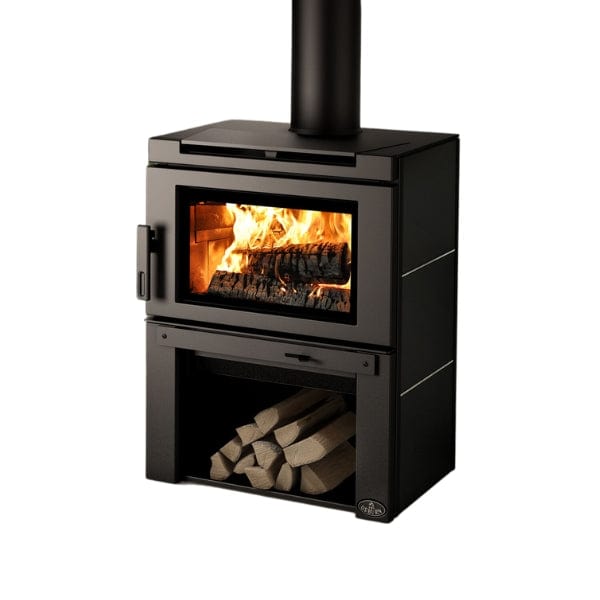

Osburn Matrix Wood Burning Stove: Luxury Heating From A Natural Source
With the same sleek, modern style and vastly improved performance, the Matrix wood-burning stove will certainly bring a European touch to your home. Let the Matrix wood stove provide you the warmth, safety, and coziness needed during these cold winters

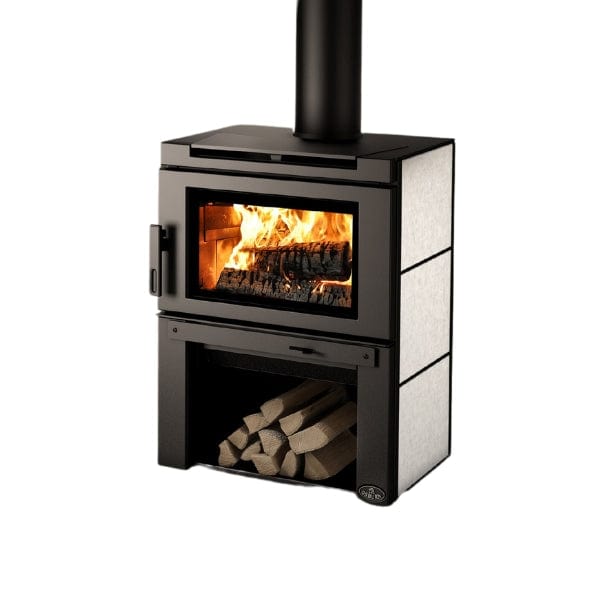

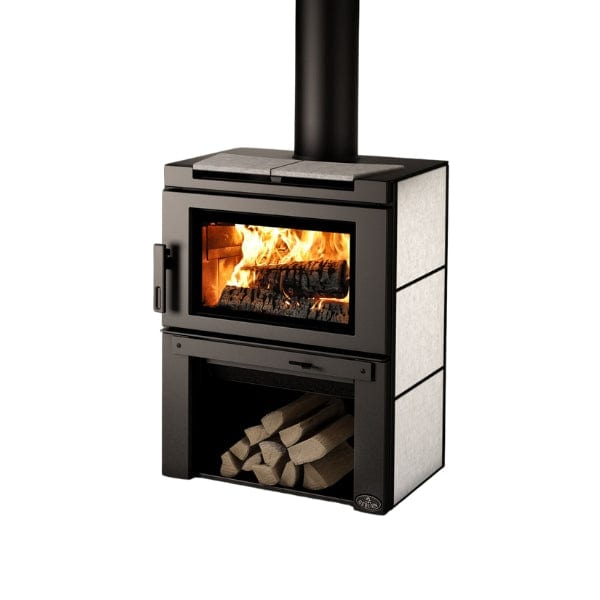

You can now personalize your device with the steel or soapstone top and side panel options from a local Quebec City mine, reminding us of the richness of our natural resources. Logs will easily fit under the large firebox, making the Matrix a practical and stylish heater. The Matrix is equipped with a 130 CFM fan to ensure optimal heat distribution. Enjoy the comfort of winter more than ever before!
When you purchase a Osburn Matrix Wood Stove, you qualify to receive a federal tax credit of up to 26% of the cost installation AND equipment. Read more about it here.
Osburn Matrix Wood Stove with Blower Features:
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 20" |
| Log positioning | Loading over width |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height (feet) | 12' |
| Baffle type | C-Cast or equivalent |
| Approved for an alcove installation | Yes |
| Approved for a mobile home installation | Yes, with fresh air intake |
| Shipping Weight | 506 lb (230 kg) |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 19 5/8" x 11 7/8" |
| Glass air-wash system | Yes |
| Premium quality blower included (CFM) | 130 |
| Overall dimension (Height) | 36 7/8" |
| Overall dimension (Width) | 27 1/8" |
| Overall dimension (Depth) | 25" |
| Door opening – dimension (Height) | 8 3/4" |
| Door opening - dimension (Width) | 17 1/2" |
| Firebox – dimension (Height) | 11 7/8" |
| Firebox – dimension (Width) | 21" |
| Firebox – dimension (Depth) | 16 1/2" |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Model | Pedestal |
| Steel thickness – body | 3/16" |
| Steel thickness – top | 5/16" |
| USA standard (emissions) | EPA |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482, UL 737 |
| Canadian standard (safety) | ULC-S627 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
Osburn Matrix Wood Stove with Blower Performance:
| Fuel type : | Dry cordwood (16" recommended) |
| Recommended heating area-ft² : | 500 - 2,100 |
| Overall firebox volume-ft³ : | 2.4 |
| EPA loading volume-ft³ : | 2.02 |
| Maximum burn time : | 8 h |
| Maximum heat output-dry cordwood : | 75,000 BTU/h (22.0 kW) |
| Overall heat output rate < : | 14,800 BTU/h (4.34 kW) to 28,600 BTU/h (8.38 kW) |
| Average overall efficiency (dry cordwood) : | 69 % (HHV) | 74 % (LHV) |
| Optimum overall efficiency : | 77% |
| Optimum heat transfer efficiency : | 75% |
| Average particulate emissions rate : | 1.54 g/h |
| Average CO : | 89.4 g/h |
Osburn Matrix Wood Stove with Blower Clearance:
| Single wall pipe | Double wall pipe | |
| Clearance – back wall | 11" | 6" |
| Clearance - corner | 10" | 7" |
| Clearance – side wall | 16" | 16" |
| Clearance – top (measured from the platform on which the appliance is installed)** | 84" | 84" |
| Clearance – minimum floor protection in front of the appliance | 16" |
Minimum clearances to combustibles*
(Data expressed in inches. 1 inch = 25.4 mm)
Osburn Matrix Wood Stove with Blower Owner's Manual:
Osburn Matrix Wood Stove with Blower Dimensions:
